H350-3

DIN 13

DIN 371

Werkstoff-Gruppen

Merkmale

<div class="tooltip-info">
<img src="/fileRepository.axd?id=703&token=bf6a7c13-6d83-4b4a-96e3-c9acd150f7f8" title="Werkzeug aus Schnellarbeitsstahl PM"/>
<div class="info">Werkzeug aus Schnellarbeitsstahl PM</div>
<div class="clear"></div>
</div>

<div class="tooltip-info">
<img src="/fileRepository.axd?id=599&token=cc7e0bb4-ec53-4555-a516-e420c46b4672" title="Sackloch < 1.5 x D, langspanende Werkstoffe"/>
<div class="info">Sackloch < 1.5 x D, langspanende Werkstoffe</div>
<div class="clear"></div>
</div>

<div class="tooltip-info">
<img src="/fileRepository.axd?id=625&token=a5353733-7eb2-45fe-a182-7c899707f5f0" title="Spiralnuten mit 25° Rechtsdrall"/>
<div class="info">Spiralnuten mit 25° Rechtsdrall</div>
<div class="clear"></div>
</div>

<div class="tooltip-info">
<img src="/fileRepository.axd?id=685&token=2527e804-c25e-4b97-af07-1ffa73a498a0" title="Anschnittlänge = 2.5 x Steigung, Form C"/>
<div class="info">Anschnittlänge = 2.5 x Steigung, Form C</div>
<div class="clear"></div>
</div>

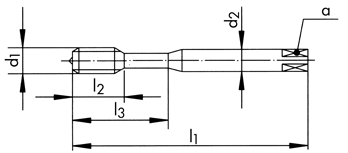

Massblatt <div class="tooltip-info-plan">
<img src="http://admin.dcswiss.ch/FileManager/toolPlan?ncarti=101238" />
</div>

<div class="tooltip-info-plan">
<img src="http://admin.dcswiss.ch/FileManager/toolPlan?ncarti=101238" />
</div>

Profilzeichnung

Werkzeugdaten

ID	D₁	Ø d₁	Tol	P	l₁	l₂	d₂	a
101238	M2	2,00	6H	0,400	45,0	7,0	2,80	2,1	2	1,60

Produktgattung H350-3 M2 6H

ID	D₁	Ø d₁	Tol	P	l₁	l₂	l₃	d₂	a
101238	M2	2,00	6H	0,400	45,0	7,0	0	2,80	2,1	2	1,60
101258	UNC2-56	2,18	2B	0,454	45,0	8,0	0	2,80	2,1	2	1,75
101239	M2.5	2,50	6H	0,450	50,0	9,0	0	2,80	2,1	3	2,05
101260	UNC4-40	2,85	2B	0,635	56,0	5,5	18	3,50	2,7	3	2,25
101241	M3	3,00	6G	0,500	56,0	5,5	18	3,50	2,7	3	2,50
101242	M3	3,00	6H	0,500	56,0	5,5	18	3,50	2,7	3	2,50
101262	UNC6-32	3,51	2B	0,794	56,0	6,5	20	4,00	3,0	3	2,75
101243	M3.5	3,50	6H	0,600	56,0	6,5	20	4,00	3,0	3	2,90
101245	M4	4,00	6H	0,700	63,0	7,5	21	4,50	3,4	3	3,30
101244	M4	4,00	6G	0,700	63,0	7,5	21	4,50	3,4	3	3,35
101263	UNC8-32	4,17	2B	0,794	63,0	7,5	21	4,50	3,4	3	3,40
101246	M4.5	4,50	6H	0,750	70,0	9,0	25	6,00	4,9	3	3,75
101257	UNC10-24	4,83	2B	1,058	70,0	9,0	25	6,00	4,9	3	3,80
101265	UNF10-32	4,83	2B	0,794	70,0	9,0	25	6,00	4,9	3	4,05
101248	M5	5,00	6H	0,800	70,0	9,0	25	6,00	4,9	3	4,20
101247	M5	5,00	6G	0,800	70,0	9,0	25	6,00	4,9	3	4,25
101250	M6	6,00	6G	1,000	80,0	11,0	30	6,00	4,9	3	5,00
101251	M6	6,00	6H	1,000	80,0	11,0	30	6,00	4,9	3	5,00
101256	UNC1/4-20	6,35	2B	1,270	80,0	11,0	30	7,00	5,5	3	5,10
101249	M6x0.75	6,00	6H	0,750	80,0	11,0	30	6,00	4,9	3	5,25
101264	UNF1/4-28	6,35	2B	0,907	80,0	11,0	30	7,00	5,5	3	5,50
101261	UNC5/16-18	7,94	2B	1,411	90,0	12,5	35	8,00	6,2	3	6,50
101254	M8	8,00	6G	1,250	90,0	12,5	35	8,00	6,2	3	6,80
101255	M8	8,00	6H	1,250	90,0	12,5	35	8,00	6,2	3	6,80
101267	UNF5/16-24	7,94	2B	1,058	90,0	12,5	35	8,00	6,2	3	6,90
101253	M8x1	8,00	6H	1,000	90,0	12,5	35	8,00	6,2	3	7,00
101252	M8x0.75	8,00	6H	0,750	90,0	12,5	35	8,00	6,2	3	7,25
101259	UNC3/8-16	9,53	2B	1,588	100,0	14,0	39	10,00	8,0	3	8,00
101266	UNF3/8-24	9,53	2B	1,058	100,0	14,0	39	10,00	8,0	3	8,50
101236	M10	10,00	6G	1,500	100,0	14,0	39	10,00	8,0	3	8,50
101237	M10	10,00	6H	1,500	100,0	14,0	39	10,00	8,0	3	8,50
145590	M10x1.25	10,00	6H	1,250	100,0	14,0	39	10,00	8,0	3	8,80
101235	M10x1	10,00	6H	1,000	100,0	14,0	39	10,00	8,0	3	9,00
